membrane contactor (e.g. Liquicell)

Postby Brandon » Wed Jun 15, 2016 10:32 pm

We received an e-mail from a user asking about membrane contactors. I asked them to start a thread, but I've been thinking about this for a while, so will start the discussion.

Does anyone have experience with these for water degassing?

Something like this: http://www.liquicel.com

See also: http://www.liquicel.com/applications/O2.cfm

On a homebrew scale, it's a bit expensive for an entire solution including the membrane contactor unit, vacuum pump, sweep gas and regulator, etc. But I've been intrigued by the idea for a while now.
missiletech
Posts: 21
Joined: Wed Jun 15, 2016 9:55 pm

Re: membrane contactor (e.g. Liquicell)

Postby missiletech » Thu Jun 16, 2016 1:32 pm

I bought a liquicel through ebay so I don't know if I have a functional unit but the particular one I found was about $100 and the sales rep I talked to yesterday said this model was designed for medical use and as such was about $5k. He mentioned there are breweries that use these and that one could easily get about 1ppm by a 1 scfm of n2 and a flow rate of about 10gpm. This is all an experiment for my pilsner/helles/kolsch or whatever you want to call it recipes... I just call them awesome.
missiletech
Posts: 21
Joined: Wed Jun 15, 2016 9:55 pm

Re: membrane contactor (e.g. Liquicell)

Postby missiletech » Thu Jun 16, 2016 1:33 pm

The breweries probably use the less expensive (but still not cheap) versions.
User avatar
Weizenberg
German Brewing
Posts: 843
Joined: Wed Nov 11, 2015 2:11 pm
Contact:

Re: membrane contactor (e.g. Liquicell)

Postby Weizenberg » Fri Jun 17, 2016 6:09 am

Their cheapest membrane filter suitable for degassing O2 is $1300.- The less expensive ones are for CO2

I'll boil + SMB :P
The Quest for Edelstoff - http://edelstoffquest.wordpress.com
missiletech
Posts: 21
Joined: Wed Jun 15, 2016 9:55 pm

Re: membrane contactor (e.g. Liquicell)

Postby missiletech » Fri Jun 17, 2016 12:33 pm

Luckily (if it's functioning) I got mine on ebay for $100.
missiletech
Posts: 21
Joined: Wed Jun 15, 2016 9:55 pm

Re: membrane contactor (e.g. Liquicell)

Postby missiletech » Fri Jun 17, 2016 12:35 pm

I would also say, I know folks who spend way more than they need to just to get equipment that may not make significant contributions to their end product. It really just depends on what's important to each person and ultimately... if it works. In this case, we'll see!
missiletech
Posts: 21
Joined: Wed Jun 15, 2016 9:55 pm

Re: membrane contactor (e.g. Liquicell)

Postby missiletech » Sat Jul 09, 2016 7:38 pm

So I tested it today results as follows:

Tap water test:


First try using the liquicel using welding gas as a sweep and water is flitered:


Next, filtered no degassing:


Another degassed:


Degassed (o2) PH test:


Filtered water (not o2 degassed) PH test:


The rig in it's not so glorious arrangement:

missiletech
Posts: 21
Joined: Wed Jun 15, 2016 9:55 pm

Re: membrane contactor (e.g. Liquicell)

Postby missiletech » Sat Jul 09, 2016 7:43 pm

So now I'm not sure what I'll do next but I definitely am more focused on moving my impala outside. But I plan on doing some brewing in the near future. Kinda exciting getting a $5k membrane contactor that's pretty darn old for next to nothing and it works!

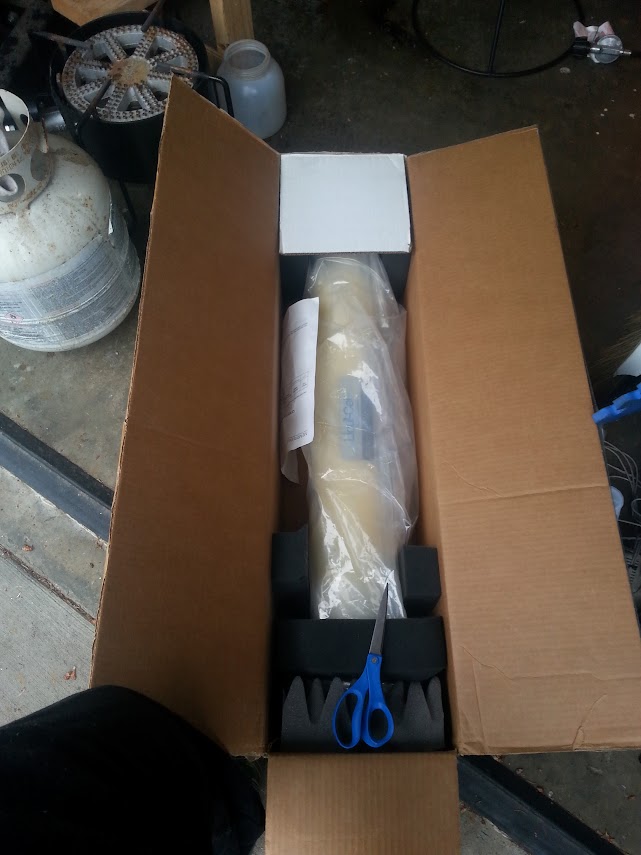

Here's a couple photos I had of the cel when it arrived and my current brewing arrangement:




Cheers!
User avatar
Brandon
German Brewing
Posts: 554
Joined: Tue Oct 13, 2015 8:38 pm
Location: Pennsylvania, USA
Contact:

Re: membrane contactor (e.g. Liquicell)

Postby Brandon » Sat Jul 09, 2016 8:16 pm

missiletech wrote:So now I'm not sure what I'll do next but I definitely am more focused on moving my impala outside. But I plan on doing some brewing in the near future. Kinda exciting getting a $5k membrane contactor that's pretty darn old for next to nothing and it works!

Here's a couple photos I had of the cel when it arrived and my current brewing arrangement:


Nice, this is exciting! I've been wanting one of these.

Please keep posting on your progress. Thanks!

Brandon
